June 3 Status:



Decade counter running - 17 DPDT relays.

Researching wider relays to reduce number of relays.

Trade-off is price and simplicity of using one kind of relay.



Movie of decade count in action.

August 23 Status:



Using 12 VAC relays.  Built panel 1 with 34 relays to test my circuitry, this is about 1/2 of the clock.



Next: build an electric pendulum escapement, and a display panel.

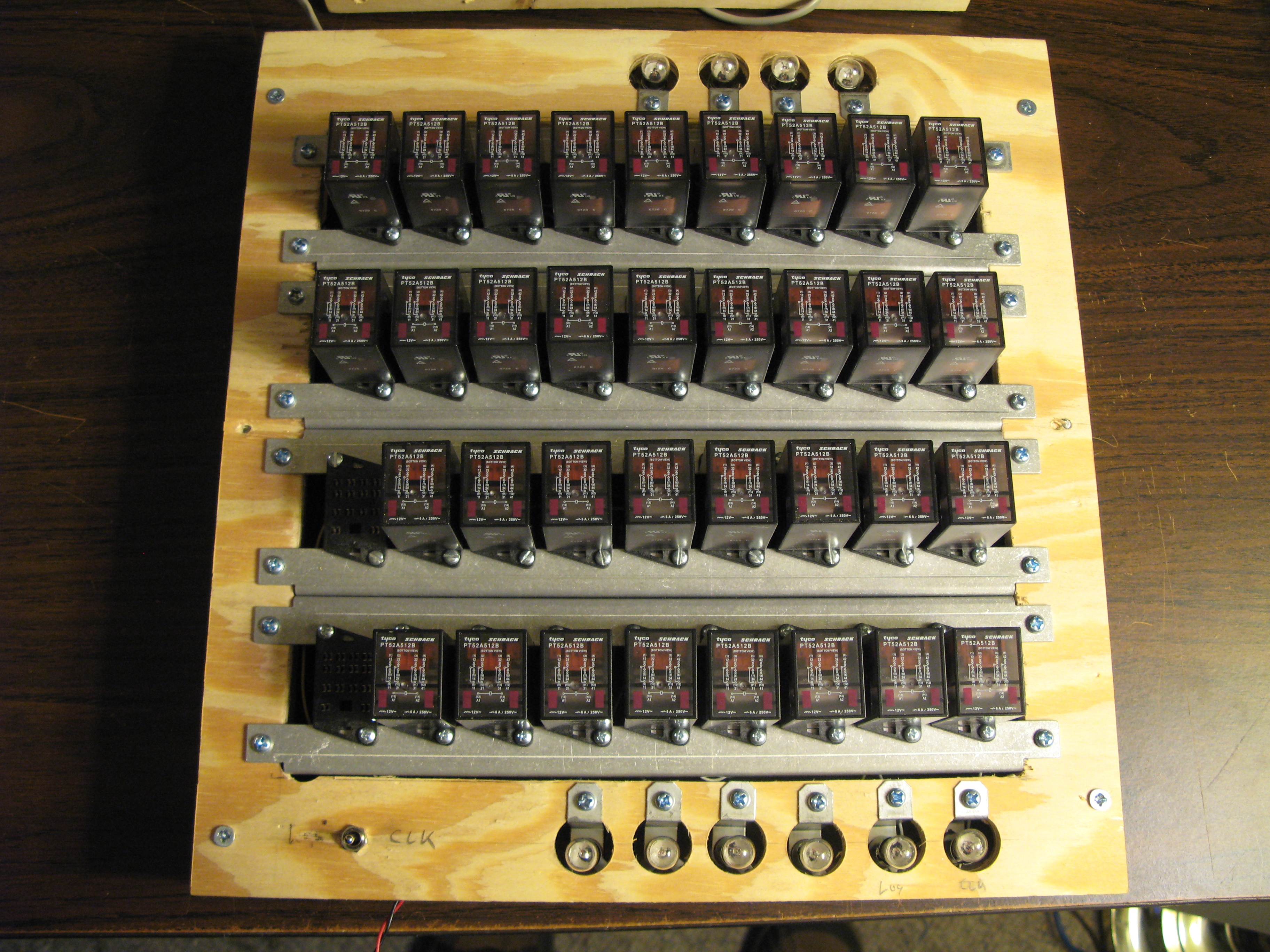

Lower panel.  Divide by 64 and divide by 10 with decode.

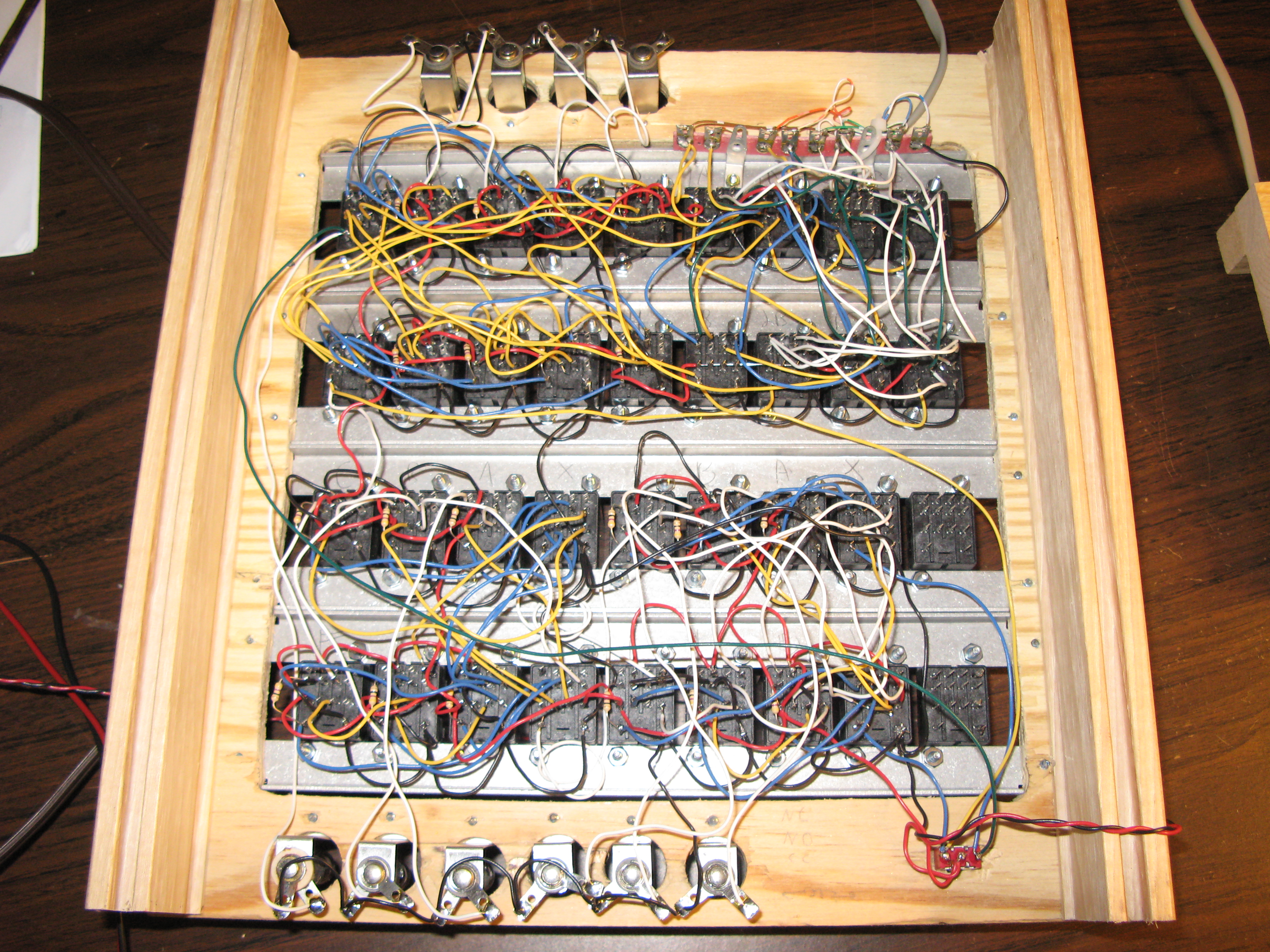

Wiring of panel, this will be replaced by a circuit board for the kit.
